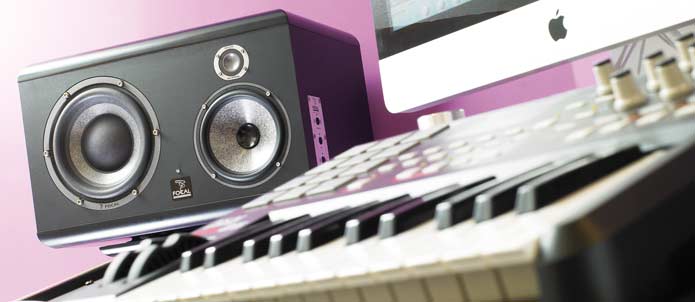

• Monitores de Referência – FOCAL SM9

    O SM9 é composto por 2 monitores: um monitor de 3 vias e um monitor de 2 vias.

    Descrição


    Este monitor se diferencia como monitor de referência graças à precisão da imagem estéreo, à sua capacidade de reproduzir cada micro detalhe do sinal de áudio e ao respeito incondicional da dinâmica original do programa musical.

    Uma das principais inovações do SM9 está no fato de oferecer 2 sistemas de monitoramento em um único gabinete. O SM9 é composto por 2 monitores: um monitor de 3 vias e um monitor de 2 vias.

    Especificações Técnicas SM9 Studio Monitor

    FOCAL Studio Monitor

    SM9

    Performance
    Frequency response 3-way mode 30Hz – 40kHz (+/- 3dB) 40Hz – 20kHz (+/- 1dB)
    2-way mode (Focus) 90Hz – 20kHz (+/- 3dB)
    Maximum SPL 3-way mode 116dB SPL (peak @ 1m)
    2-way mode (Focus) 106dB SPL (peak @ 1m)
    Electronic section
    Input Type / Impedance: Electronically balanced / 10 kOhms
    Connector: XLR
    Sensitivity: Adjustable, +4dBu or -10dBV
    Bass 400W, class AB
    Midrange 100W, class AB
    Treble 100W, class AB
    Treble 100W, class AB
    Power supply Local supply: 230V (3.15A fuse) 115V (6.3A)
    Connection IEC inlet and detachable power cord
    User controls and indicators (Rear panel):
    Input sensitivity selector (+4dBu / -10dBV)
    High-pass crossover (full range, 45, 60, 90Hz @ -6dB)
    Low frequency shelving
    (+/- 3dB from 30 to 250Hz per step of 0.5dB)
    High frequency shelving
    (+/- 3dB from 4.5 to 40kHz per step of 0.5dB)
    Low frequency EQ
    (+/- 3dB per step of 0.5dB @ 50Hz, Q factor = 2)
    Low-mid frequency EQ
    (+/- 3dB per step of 0.5dB @ 160Hz, Q factor = 1)
    Mid frequency EQ
    (+/- 3dB per step of 0.5dB @ 1kHz, Q factor = 0.6)

    (Side panel)
    Stand By / On switch
    Direct switch
    Focus switch

    Light indicator Power On, clipping and default on front panel LED
    Transducers
    Passive radiator 11WPP52, 11” (27cm) Focal “W” composite sandwich cone piston, extra wide inverted surround
    radiator
    Subwoofer 8W7571, 8” (20cm) Focal “W” composite sandwich cone driver
    Midrange 6W0452, 6.5” (16.5cm) Focal “W” composite sandwich cone driver
    Tweeter TB872, 1” pure Beryllium inverted dome tweeter
    Cabine
    Construction 0.88”(22mm) and 1.2” (30mm) panels with internal braces
    Finish Black natural veneering top and bottom panels, black body
    Dimensions (HxLxD) 12.8” x 19.6” x 15.6” (320mm x 490mm x 390mm)
    Weight 77lb (35kg)
